    2. ASME B18.2.2 Heavy Hex Nut Dimensional and Structural Data

    ASME B18.2.2 Heavy Hex Nut Dimensional and Structural Data

    ASME B18.2.2 Heavy Hex Nut standards provide critical dimensional outlines, meticulously engineered for high-pressure, high-strength structural environments.
    From a purely physical and geometric perspective, the core distinction between a regular hex nut and a heavy hex nut lies strictly in the physical proportions allocated for load distribution and material shear resistance.
    Under the ASME B18.2.2 specification, heavy hex nuts are explicitly engineered with a substantially larger Width Across Flats (WAF) and an increased overall vertical thickness compared to standard-issue commercial hex nuts.
    This augmented volume is not merely a stylistic choice; it significantly increases the bearing surface area, which serves to diffuse extreme high-tension clamping forces over a much broader structural footprint.
    This geometric expansion is physically critical in applications involving high-pressure piping flanges (such as those governed by ASME B16.5) and heavy structural steelwork bridges.
    If standard, narrower hex nuts were subjected to the extreme tension generated by Grade 8 or A490 structural bolts, the underlying steel substrate could suffer from severe localized embedment, surface crushing, and subsequent loss of joint pre-load.
    The heavy hex nut mitigates this by lowering the stress (Force over Area) exerted onto the joint face.
    Heavy hex nuts are intrinsically linked to the highest tier of high-strength bolt grades.
    They serve as the mandatory mating hardware for ASTM A325 and ASTM A490 heavy structural bolts, as well as ASTM A193 alloy steel stud bolts utilized in high-temperature pressure vessels.
    The additional thread engagement length provided by the increased nut thickness guarantees that the mechanical failure mode under extreme axial load will always be the ductile yielding of the bolt shank rather than the catastrophic, shear stripping of the internal nut threads.
    Dimensional tolerances for these nuts scale up significantly as nominal diameters increase; for example, a 1-inch nominal heavy hex nut possesses a minimum WAF of 1.575 inches and a maximum thickness of 0.984 inches, dwarfing the dimensions of a standard 1-inch regular hex nut.
    An essential consideration within the dimensional parameters of heavy hex nuts is the accommodation of thick surface coatings.
    In heavy infrastructure, bridge construction, and coastal applications, fasteners are frequently hot-dip galvanized to provide long-term galvanic corrosion resistance in accordance with ASTM A153 or ASTM F2329.
    Because the molten galvanizing process deposits between 2.2 to 5 mils of rough zinc onto the internal threads, heavy hex nuts must frequently be tapped oversize following the coating process to allow the bolt to thread without binding.
    The ASME B18.2.2 dimensions support these overtapping requirements without compromising the minimum necessary thread shear area.
    The nuts are typically double chamfered, though sizes exceeding 7/16 inch may frequently feature a single flat washer face to further optimize bearing stress distribution and ensure a perfectly flat mating interface.

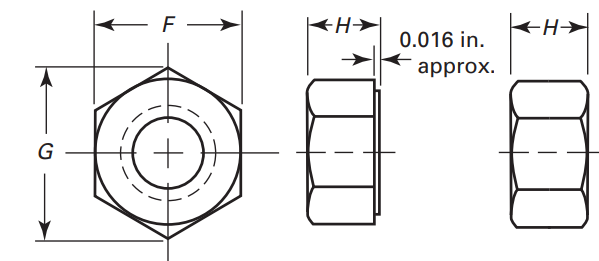

    ASME B18.2.2 Heavy Hex Nuts

    ASME B18.2.2 Heavy Hex Nut Dimensions (mm)

    Nominal Size Basic Major Diameter Width Across Flats, F Width Across Corners, G Thickness, H Maximum Runout of Bearing Surface to Thread Axis, FIM
    Basic Min. Max. Min. Max. Basic Min. Max. Up to 150k psi 150k psi +
    1/4 6.350 12.700 12.395 12.700 14.122 14.656 5.953 5.537 6.350 0.432 0.279
    5/16 7.938 14.288 13.868 14.275 15.799 16.510 7.541 7.112 7.976 0.508 0.305
    3/8 9.525 17.463 16.993 17.475 19.380 20.168 9.128 8.661 9.576 0.533 0.356
    7/16 11.113 19.050 18.491 19.050 21.082 21.996 10.716 10.236 11.201 0.559 0.381
    1/2 12.700 22.225 21.590 22.225 24.613 25.654 12.303 11.786 12.802 0.584 0.406
    9/16 14.288 23.813 23.089 23.825 26.340 27.508 13.891 13.360 14.427 0.610 0.432
    5/8 15.875 26.988 26.187 26.975 29.845 31.166 15.478 14.910 16.027 0.635 0.457
    3/4 19.050 31.750 30.785 31.750 35.103 36.652 18.653 18.034 19.253 0.686 0.508
    7/8 22.225 36.513 35.408 36.525 40.361 42.164 21.828 21.158 22.479 0.737 0.559
    1 25.400 41.275 40.005 41.275 45.618 47.650 25.003 24.282 25.705 0.787 0.610
    1 1/8 28.575 46.038 44.602 46.025 50.851 53.162 28.178 27.407 28.931 0.838 0.686
    1 1/4 31.750 50.800 49.225 50.800 56.109 58.649 31.353 30.150 31.775 0.889 0.762
    1 3/8 34.925 55.563 53.823 55.575 61.366 64.160 34.528 33.274 35.001 0.965 0.838
    1 1/2 38.100 60.325 58.420 60.325 66.599 69.647 37.703 36.398 38.227 1.041 0.914
    1 5/8 41.275 65.088 63.017 65.075 71.831 75.159 40.878 39.522 41.453 1.118 0.965
    1 3/4 44.450 69.850 67.615 69.850 77.089 80.645 44.053 42.647 44.679 1.219 1.041
    1 7/8 47.625 74.613 72.238 74.625 82.347 86.157 47.228 45.771 47.904 1.295 1.118
    2 50.800 79.375 76.835 79.375 87.605 91.643 50.403 48.895 51.130 1.397 1.194
    2 1/4 57.150 88.900 86.055 88.900 98.095 102.641 56.753 54.737 57.175 1.549 1.321
    2 1/2 63.500 98.425 95.250 98.425 108.585 113.640 63.103 60.985 63.627 1.727 1.473
    2 3/4 69.850 107.950 104.445 107.950 119.075 124.638 69.453 67.234 70.079 1.880 1.626
    3 76.200 117.475 113.665 117.475 129.591 135.636 75.803 73.482 76.530 2.057 1.778
    3 1/4 82.550 127.000 122.885 127.000 140.081 146.660 81.756 79.350 82.601 2.210 1.905
    3 1/2 88.900 136.525 132.080 136.525 150.571 157.658 88.106 85.598 89.052 2.388 2.057
    3 3/4 95.250 146.050 141.275 146.050 161.061 168.656 94.456 91.846 95.504 2.540 2.210
    4 101.600 155.575 150.495 155.575 171.577 179.654 100.806 98.095 101.956 2.718 2.362

    ASME B18.2.2 Heavy Hex Nut Dimensions (Inch)

    Nominal Size Basic Major Diameter Width Across Flats, F Width Across Corners, G Thickness, H Maximum Runout of Bearing Surface to Thread Axis, FIM
    Basic Min. Max. Min. Max. Basic Min. Max. Up to 150k psi 150k psi +
    1/4 0.2500 1/2 0.488 0.500 0.556 0.577 15/64 0.218 0.250 0.017 0.011
    5/16 0.3125 9/16 0.546 0.562 0.622 0.650 19/64 0.280 0.314 0.020 0.012
    3/8 0.3750 11/16 0.669 0.688 0.763 0.794 23/64 0.341 0.377 0.021 0.014
    7/16 0.4375 3/4 0.728 0.750 0.830 0.866 27/64 0.403 0.441 0.022 0.015
    1/2 0.5000 7/8 0.850 0.875 0.969 1.010 31/64 0.464 0.504 0.023 0.016
    9/16 0.5625 15/16 0.909 0.938 1.037 1.083 35/64 0.526 0.568 0.024 0.017
    5/8 0.6250 1 1/16 1.031 1.062 1.175 1.227 39/64 0.587 0.631 0.025 0.018
    3/4 0.7500 1 1/4 1.212 1.250 1.382 1.443 47/64 0.710 0.758 0.027 0.020
    7/8 0.8750 1 7/16 1.394 1.438 1.589 1.660 55/64 0.833 0.885 0.029 0.022
    1 1.0000 1 5/8 1.575 1.625 1.796 1.876 63/64 0.956 1.012 0.031 0.024
    1 1/8 1.1250 1 13/16 1.756 1.812 2.002 2.093 1 7/64 1.079 1.139 0.033 0.027
    1 1/4 1.2500 2 1.938 2.000 2.209 2.309 1 7/32 1.187 1.251 0.035 0.030
    1 3/8 1.3750 2 3/16 2.119 2.188 2.416 2.526 1 11/32 1.310 1.378 0.038 0.033
    1 1/2 1.5000 2 3/8 2.300 2.375 2.622 2.742 1 15/32 1.433 1.505 0.041 0.036
    1 5/8 1.6250 2 9/16 2.481 2.562 2.828 2.959 1 19/32 1.556 1.632 0.044 0.038
    1 3/4 1.7500 2 3/4 2.662 2.750 3.035 3.175 1 23/32 1.679 1.759 0.048 0.041
    1 7/8 1.8750 2 15/16 2.844 2.938 3.242 3.392 1 27/32 1.802 1.886 0.051 0.044
    2 2.0000 3 1/8 3.025 3.125 3.449 3.608 1 31/32 1.925 2.013 0.055 0.047
    2 1/4 2.2500 3 1/2 3.388 3.500 3.862 4.041 2 13/64 2.155 2.251 0.061 0.052
    2 1/2 2.5000 3 7/8 3.750 3.875 4.275 4.474 2 29/64 2.401 2.505 0.068 0.058
    2 3/4 2.7500 4 1/4 4.112 4.250 4.688 4.907 2 45/64 2.647 2.759 0.074 0.064
    3 3.0000 4 5/8 4.475 4.625 5.102 5.340 2 61/64 2.893 3.013 0.081 0.070
    3 1/4 3.2500 5 4.838 5.000 5.515 5.774 3 3/16 3.124 3.252 0.087 0.075
    3 1/2 3.5000 5 3/8 5.200 5.375 5.928 6.207 3 7/16 3.370 3.506 0.094 0.081
    3 3/4 3.7500 5 3/4 5.562 5.750 6.341 6.640 3 11/16 3.616 3.760 0.100 0.087
    4 4.0000 6 1/8 5.925 6.125 6.755 7.073 3 15/16 3.862 4.014 0.107 0.093
