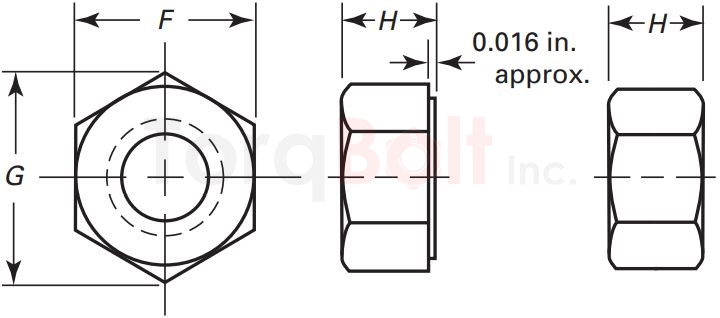

ASME B18.2.2 Regular Hex Nut documentation
offers authoritative
engineering data, detailing
essential dimensional parameters including Width Across Flats, Width Across Corners,
and overall thickness.
The regular hex nut is unequivocally the foundational fastening component of
modern mechanical
engineering, serving as the standard counterpart to Unified National Coarse (UNC) and
Unified National Fine
(UNF) machine screws and bolts.
Under the extensive ASME B18.2.2 specification, the regular hex
nut is meticulously
engineered to provide an optimal mathematical balance between material volume, internal
thread shear strength,
and rotational wrench clearance.
Unlike the heavy hex variant designed for extreme structural loads, the regular hex
nut features a
moderate Width Across Flats (WAF) and thickness profile, making it ideally
suited for general fastening
applications across commercial machinery, automotive assemblies, and everyday
industrial equipment where spatial
efficiency is prioritized over absolute extreme clamping force.
The dimensional integrity of the ASME B18.2.2 hex nut is maintained through
strict manufacturing
tolerances governing the Width Across Flats (F), the Width Across Corners
(G), and the overall
Thickness (H).
To ensure that a bolted joint tightens uniformly without inducing off-axis bending
moments into the bolt shank,
the standard dictates that the axis of the tapped hole must be located at true position
with respect to the axis
of the nut body, constrained within highly specific diametric tolerance zones.
Furthermore, the standard permits morphological options such as double chamfering
(where both top and bottom
faces are angled) or a singular washer-faced bearing surface with a chamfered top.
This washer face is critical in dynamic assemblies, as it prevents the sharp hexagonal
corners of the rotating
nut from scoring, gouging, or galling the mating substrate during high-speed pneumatic
torque applications.
From a metallurgical and structural performance standpoint, plain and zinc-plated
carbon steel hex nuts
are typically evaluated based on Proof Load Stress—the absolute maximum tensile force
the internal threads of
the nut can withstand before undergoing permanent plastic deformation.
Nuts manufactured to the ubiquitous ASTM
A563 Grade A
specification possess a proof load stress of approximately
90 ksi in their plain, unplated condition.
However, the introduction of a zinc plating process alters the material dynamics and
hydrogen embrittlement
risks, subsequently reducing the rated proof load stress to 68 ksi.
For highly corrosive environments requiring austenitic alloys, stainless steel variants
governed by ASTM
F594
exhibit proof load stresses beginning at 70 ksi, fluctuating depending on the specific
alloy group and
cold-working condition.
Maintaining exact dimensional compliance with ASME B18.2.2 ensures that the
internal thread shear area
is perfectly calibrated against the corresponding bolt's tensile yield point.
In proper mechanical design, the geometry of the nut ensures that an over-torqued
assembly will result in the
yielding or fracture of the bolt shank rather than the sudden, catastrophic stripping
of the nut threads.
| Nominal Size | Basic Major Diameter of Thread | Width Across Flats, F | Width Across Corners, G | Thickness, H |
Maximum Runout of Bearing Surface to Thread Axis, FIM |
||||
|---|---|---|---|---|---|---|---|---|---|
| Min. | Max | Min. | Max | Min. | Max | Up to 150,000 psi | 150,000 psi and Greater | ||
| 1/4 | 6.35 | 10.8712 | 11.1252 | 12.3952 | 12.827 | 5.3848 | 5.7404 | 0.381 | 0.254 |
| 5/16 | 7.9375 | 12.4206 | 12.7 | 14.1478 | 14.6558 | 6.5532 | 6.9342 | 0.4064 | 0.2794 |
| 3/8 | 9.525 | 13.9954 | 14.3002 | 15.9512 | 16.51 | 8.128 | 8.5598 | 0.4318 | 0.3048 |
| 7/16 | 11.1125 | 17.145 | 17.4752 | 19.5072 | 20.1676 | 9.271 | 9.779 | 0.4572 | 0.3302 |
| 1/2 | 12.7 | 18.6944 | 19.05 | 21.336 | 21.9964 | 10.8458 | 11.3792 | 0.4826 | 0.3556 |
| 9/16 | 14.2875 | 21.8694 | 22.225 | 24.9428 | 25.654 | 12.0142 | 12.5984 | 0.508 | 0.381 |
| 5/8 | 15.875 | 23.4188 | 23.8252 | 26.6954 | 27.5082 | 13.589 | 14.1986 | 0.5334 | 0.4064 |
| 3/4 | 19.05 | 27.6352 | 28.575 | 31.496 | 32.9946 | 15.6718 | 16.891 | 0.5842 | 0.4572 |
| 7/8 | 22.225 | 32.2326 | 33.3248 | 36.7538 | 38.5064 | 18.3896 | 19.7104 | 0.635 | 0.508 |
| 1 | 25.4 | 36.83 | 38.1 | 41.9862 | 43.9928 | 21.1074 | 22.5298 | 0.6858 | 0.5588 |
| 1 1/8 | 28.575 | 41.4274 | 42.8752 | 47.2186 | 49.5046 | 23.8506 | 25.3746 | 0.762 | 0.635 |
| 1 1/4 | 31.75 | 46.0248 | 47.625 | 52.4764 | 54.991 | 26.162 | 27.7876 | 0.8382 | 0.7112 |
| 1 3/8 | 34.925 | 50.6476 | 52.3748 | 57.7342 | 60.5028 | 28.9052 | 30.6324 | 0.9144 | 0.7874 |
| 1 1/2 | 38.1 | 55.245 | 57.15 | 62.992 | 65.9892 | 31.623 | 33.4518 | 0.9906 | 0.8636 |
| 1 5/8 | 41.275 | 59.69 | 61.722 | 68.0466 | 71.247 | 34.6456 | 35.9664 | 1.1176 | 0.9652 |
| 1 3/4 | 44.45 | 64.4652 | 66.675 | 73.4822 | 76.9874 | 37.084 | 39.116 | 1.2192 | 1.0414 |
| 1 7/8 | 47.625 | 69.1388 | 71.4502 | 78.8162 | 82.4738 | 39.8018 | 41.9354 | 1.2954 | 1.1176 |
| 2 | 50.8 | 73.66 | 76.2 | 83.9724 | 87.9856 | 42.545 | 44.7802 | 1.397 | 1.1938 |
| 2 1/4 | 57.15 | 82.8802 | 85.725 | 94.4626 | 98.9838 | 48.006 | 50.4444 | 1.5494 | 1.3208 |
| 2 1/2 | 63.5 | 92.075 | 95.25 | 104.9782 | 109.982 | 53.467 | 56.1086 | 1.7272 | 1.4732 |
| 2 3/4 | 69.85 | 101.2952 | 104.775 | 115.4684 | 120.9802 | 58.9026 | 61.7474 | 1.8796 | 1.6256 |
| 3 | 76.2 | 110.49 | 114.3 | 125.9586 | 131.9784 | 64.3636 | 67.4116 | 2.0574 | 1.778 |
| 3 1/4 | 82.55 | 119.7102 | 123.825 | 136.4742 | 142.9766 | 69.8246 | 73.0758 | 2.2098 | 1.905 |
| 3 1/2 | 88.9 | 128.905 | 133.35 | 146.9644 | 153.9748 | 75.2856 | 78.74 | 2.3876 | 2.0574 |
| 3 3/4 | 95.25 | 138.1252 | 142.875 | 157.4546 | 164.973 | 80.7212 | 84.3788 | 2.54 | 2.2098 |
| 4 | 101.6 | 147.32 | 152.4 | 167.9448 | 175.9712 | 86.1822 | 90.043 | 2.7178 | 2.3622 |
| Nominal Size | Basic Major Diameter of Thread | Width Across Flats, F | Width Across Corners, G | Thickness, H |
Maximum Runout of Bearing Surface to Thread Axis, FIM |
||||
|---|---|---|---|---|---|---|---|---|---|
| Min. | Max | Min. | Max | Min. | Max | Up to 150,000 psi | 150,000 psi and Greater | ||
| 1/4 | 0.2500 | 0.428 | 0.438 | 0.488 | 0.505 | 0.212 | 0.226 | 0.015 | 0.010 |
| 5/16 | 0.3125 | 0.489 | 0.500 | 0.557 | 0.577 | 0.258 | 0.273 | 0.016 | 0.011 |
| 3/8 | 0.3750 | 0.551 | 0.563 | 0.628 | 0.650 | 0.320 | 0.337 | 0.017 | 0.012 |
| 7/16 | 0.4375 | 0.675 | 0.688 | 0.768 | 0.794 | 0.365 | 0.385 | 0.018 | 0.013 |
| 1/2 | 0.5000 | 0.736 | 0.750 | 0.840 | 0.866 | 0.427 | 0.448 | 0.019 | 0.014 |
| 9/16 | 0.5625 | 0.861 | 0.875 | 0.982 | 1.010 | 0.473 | 0.496 | 0.020 | 0.015 |
| 5/8 | 0.6250 | 0.922 | 0.938 | 1.051 | 1.083 | 0.535 | 0.559 | 0.021 | 0.016 |
| 3/4 | 0.7500 | 1.088 | 1.125 | 1.240 | 1.299 | 0.617 | 0.665 | 0.023 | 0.018 |
| 7/8 | 0.8750 | 1.269 | 1.312 | 1.447 | 1.516 | 0.724 | 0.776 | 0.025 | 0.020 |
| 1 | 1.0000 | 1.450 | 1.500 | 1.653 | 1.732 | 0.831 | 0.887 | 0.027 | 0.022 |
| 1 1/8 | 1.1250 | 1.631 | 1.688 | 1.859 | 1.949 | 0.939 | 0.999 | 0.030 | 0.025 |
| 1 1/4 | 1.2500 | 1.812 | 1.875 | 2.066 | 2.165 | 1.030 | 1.094 | 0.033 | 0.028 |
| 1 3/8 | 1.3750 | 1.994 | 2.062 | 2.273 | 2.382 | 1.138 | 1.206 | 0.036 | 0.031 |
| 1 1/2 | 1.5000 | 2.175 | 2.250 | 2.480 | 2.598 | 1.245 | 1.317 | 0.039 | 0.034 |
| 1 5/8 | 1.6250 | 2.35 | 2.43 | 2.679 | 2.805 | 1.364 | 1.416 | 0.044 | 0.038 |
| 1 3/4 | 1.7500 | 2.538 | 2.625 | 2.893 | 3.031 | 1.460 | 1.540 | 0.048 | 0.041 |
| 1 7/8 | 1.8750 | 2.722 | 2.813 | 3.103 | 3.247 | 1.567 | 1.651 | 0.051 | 0.044 |
| 2 | 2.0000 | 2.900 | 3.000 | 3.306 | 3.464 | 1.675 | 1.763 | 0.055 | 0.047 |
| 2 1/4 | 2.2500 | 3.263 | 3.375 | 3.719 | 3.897 | 1.890 | 1.986 | 0.061 | 0.052 |
| 2 1/2 | 2.5000 | 3.625 | 3.750 | 4.133 | 4.330 | 2.105 | 2.209 | 0.068 | 0.058 |
| 2 3/4 | 2.7500 | 3.988 | 4.125 | 4.546 | 4.763 | 2.319 | 2.431 | 0.074 | 0.064 |
| 3 | 3.0000 | 4.350 | 4.500 | 4.959 | 5.196 | 2.534 | 2.654 | 0.081 | 0.070 |
| 3 1/4 | 3.2500 | 4.713 | 4.875 | 5.373 | 5.629 | 2.749 | 2.877 | 0.087 | 0.075 |
| 3 1/2 | 3.5000 | 5.075 | 5.250 | 5.786 | 6.062 | 2.964 | 3.100 | 0.094 | 0.081 |
| 3 3/4 | 3.7500 | 5.438 | 5.625 | 6.199 | 6.495 | 3.178 | 3.322 | 0.100 | 0.087 |
| 4 | 4.0000 | 5.800 | 6.000 | 6.612 | 6.928 | 3.393 | 3.545 | 0.107 | 0.093 |
ASME B18.2.2 hex nuts are typically manufactured in A194 Grade 2H (most common, Q&T carbon steel), Grade 8 (304 stainless), and Grade 8M (316 stainless). Heavy-duty pressure-vessel service prefers heavy hex nuts. For metric equivalents, see ISO 4032 or ASME B18.2.4.1M. Full specification: ASTM A194 PDF. A194 hub.
The width across flats (F) for a 1-inch hex nut per ASME B18.2.2 is 1-1/2 inches (1.500 in basic). For finished hex nuts the thickness is 55/64 inch (0.859 in); for heavy hex nuts the thickness is 63/64 inch (0.984 in) and width across flats is 1-5/8 inch.
Heavy hex nuts have a larger width across flats and greater thickness than standard hex nuts of the same nominal size, providing more thread engagement and load-bearing surface. Heavy hex nuts are required for ASTM A194 Grade 2H, 4, 7, 8 in high-pressure or high-temperature bolting applications.
ASME B18.2.2 hex nuts use Unified Coarse (UNC), Unified Fine (UNF), or 8-thread Series (8UN) thread series per ASME B1.1. Heavy hex nuts 1 inch and larger typically use 8UN series matching ASTM A193 stud bolt threading.
