ASME B18.2.2 Square Nut provides comprehensive
engineering
specifications, tolerance limits, and
dimensional charts for American National Standard square nuts under the ASME B18.2.2
framework.
The square nut, while largely superseded by the hexagon nut in modern
high-density mechanical
assemblies, remains a highly relevant component in specific industrial sectors,
including agricultural
machinery, utility pole construction, timber framing, and legacy rail systems.
According to the ASME B18.2.2 dimensional standard, Square
nuts are characterized by
their four-sided geometry, which provides an exceptionally large wrenching surface
area.
This extended bearing surface significantly mitigates the risk of wrench slippage and
prevents the rounding of
the fastener corners during high-torque manual installations.
However, the geometric constraint of a square nut necessitates a minimum
90-degree rotational clearance
for tool engagement, rendering it physically unsuited for confined mechanical envelopes
compared to the
60-degree rotational requirement of modern hexagon variants.
The dimensional limits for ASME B18.2.2 regular square nuts are
defined across nominal sizes
ranging primarily from 1/4 inch up to 1-1/2 inches.

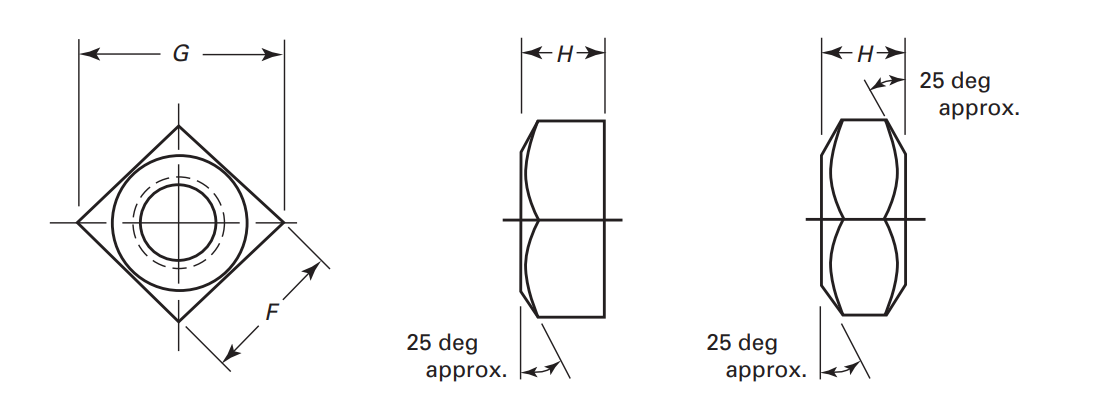

The specification strictly dictates the Width Across Flats (F), the Width
Across Corners (G),
and the overall Thickness (H) to ensure uniform load distribution across the engaged
substrate.
The standard deliberately accommodates both flat-bottom and chamfered-bottom
configurations, allowing engineers
to specify variable bearing surface topographies based on the hardness and material
properties of the mating
surface.
When applied in standard industrial environments, these fasteners are typically
manufactured from carbon steel
to meet the rigorous mechanical property requirements of ASTM
A563 Grade A or
SAE J995 Grade
2.
Nuts of other materials, including corrosion-resistant stainless steel, brass, bronze,
and aluminum alloys, are
also governed by this standard, requiring cross-referencing with ASTM
F594 for stainless
properties and ASTM
F467 for nonferrous requirements.
Because square nuts are frequently utilized in highly exposed external
environments—such as
high-voltage outdoor power transmission structures—the dimensional tolerances must
inherently account for heavy
protective coatings.
When electroplated finishes are specified by the purchaser, the nut dimensions must
adhere to the allowances of
ASTM
F1941.
More critically, when hot-dip galvanizing is employed to provide decades of cathodic
protection, the process
deposits between 2.2 to 5 mils of zinc onto the internal threads.
To accommodate this anti-corrosion layer without inducing thread binding, the internal
threads of the square
nuts must be tapped
oversize in accordance with standard thread gaging allowances.
| Nominal Size (in) | Basic Major Diameter | Width Across Flats, F | Width Across Corners, G | Thickness | Runout to Thread Axis, FIM | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Basic | Min. | Max. | Min. | Max. | Basic | Min. | Max. | |||
| 1/4 | 6.350 | 11.11 | 10.80 | 11.13 | 14.07 | 15.72 | 5.56 | 5.16 | 5.97 | 0.28 |
| 5/16 | 7.938 | 14.29 | 13.89 | 14.27 | 18.31 | 20.19 | 6.75 | 6.32 | 7.19 | 0.38 |
| 3/8 | 9.525 | 15.88 | 15.39 | 15.88 | 20.37 | 22.45 | 8.33 | 7.87 | 8.79 | 0.41 |
| 7/16 | 11.113 | 19.05 | 18.49 | 19.05 | 24.64 | 26.95 | 9.53 | 9.04 | 10.01 | 0.48 |
| 1/2 | 12.700 | 20.64 | 20.02 | 20.62 | 26.72 | 29.18 | 11.11 | 10.62 | 11.63 | 0.56 |
| 5/8 | 15.875 | 25.40 | 24.61 | 25.40 | 33.02 | 35.92 | 13.89 | 13.34 | 14.45 | 0.66 |
| 3/4 | 19.050 | 28.58 | 27.64 | 28.58 | 37.19 | 40.41 | 16.67 | 16.05 | 17.27 | 0.74 |
| 7/8 | 22.225 | 33.34 | 32.23 | 33.32 | 43.48 | 47.14 | 19.45 | 18.80 | 20.12 | 0.86 |
| 1 | 25.400 | 38.10 | 36.83 | 38.10 | 49.81 | 53.87 | 22.23 | 21.51 | 22.94 | 0.99 |
| 1 1/8 | 28.575 | 42.86 | 41.43 | 42.88 | 56.11 | 60.60 | 25.40 | 24.64 | 26.16 | 0.74 |
| 1 1/4 | 31.750 | 47.63 | 46.02 | 47.63 | 62.43 | 67.36 | 27.78 | 26.97 | 28.60 | 0.81 |
| 1 3/8 | 34.925 | 52.39 | 50.65 | 52.37 | 68.78 | 74.09 | 30.56 | 29.69 | 31.42 | 0.89 |
| 1 1/2 | 38.100 | 57.15 | 55.25 | 57.15 | 75.08 | 80.82 | 33.34 | 32.41 | 34.24 | 0.99 |
| Nominal Size | Basic Major Diameter of Thread | Width Across Flats, F | Width Across Corners, G | Thickness | Bearing Surface Runout to Thread Axis, FIM | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Basic | Min. | Max. | Min. | Max. | Basic | Min. | Max. | |||
| 1/4 | 0.2500 | 7/16 | 0.425 | 0.438 | 0.554 | 0.619 | 7/32 | 0.203 | 0.235 | 0.011 |
| 5/16 | 0.3125 | 9/16 | 0.547 | 0.562 | 0.721 | 0.795 | 17/64 | 0.249 | 0.283 | 0.015 |
| 3/8 | 0.3750 | 5/8 | 0.606 | 0.625 | 0.802 | 0.884 | 21/64 | 0.310 | 0.346 | 0.016 |
| 7/16 | 0.4375 | 3/4 | 0.728 | 0.750 | 0.970 | 1.061 | 3/8 | 0.356 | 0.394 | 0.019 |
| 1/2 | 0.5000 | 13/16 | 0.788 | 0.812 | 1.052 | 1.149 | 7/16 | 0.418 | 0.458 | 0.022 |
| 5/8 | 0.6250 | 1 | 0.969 | 1.000 | 1.300 | 1.414 | 35/64 | 0.525 | 0.569 | 0.026 |
| 3/4 | 0.7500 | 1 1/8 | 1.088 | 1.125 | 1.464 | 1.591 | 21/32 | 0.632 | 0.680 | 0.029 |
| 7/8 | 0.8750 | 1 5/16 | 1.269 | 1.312 | 1.712 | 1.856 | 49/64 | 0.740 | 0.792 | 0.034 |
| 1 | 1.0000 | 1 1/2 | 1.450 | 1.500 | 1.961 | 2.121 | 7/8 | 0.847 | 0.903 | 0.039 |
| 1 1/8 | 1.1250 | 1 11/16 | 1.631 | 1.688 | 2.209 | 2.386 | 1 | 0.970 | 1.030 | 0.029 |
| 1 1/4 | 1.2500 | 1 7/8 | 1.812 | 1.875 | 2.458 | 2.652 | 1 3/32 | 1.062 | 1.126 | 0.032 |
| 1 3/8 | 1.3750 | 2 1/16 | 1.994 | 2.062 | 2.708 | 2.917 | 1 13/64 | 1.169 | 1.237 | 0.035 |
| 1 1/2 | 1.5000 | 2 1/4 | 2.175 | 2.250 | 2.956 | 3.182 | 1 5/16 | 1.276 | 1.348 | 0.039 |
